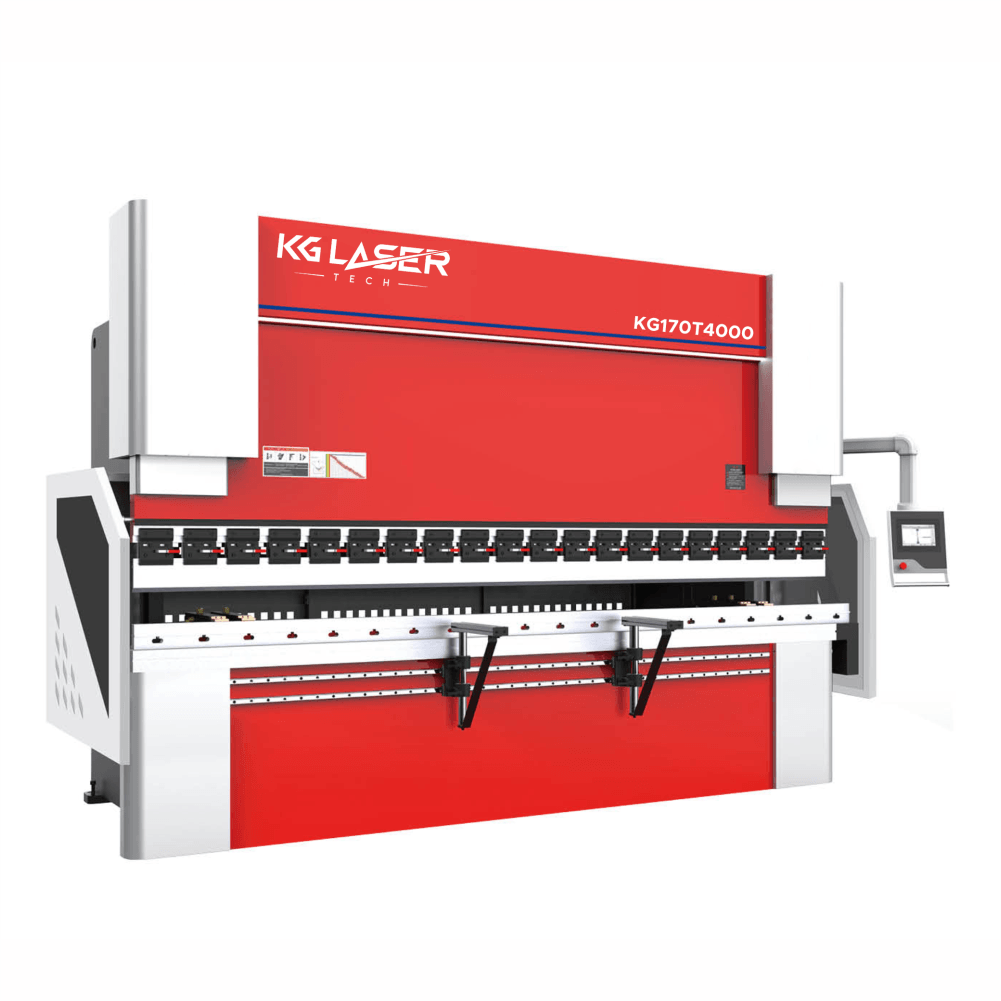

Single servo hybrid CNC bending machine

Single servo hybrid CNC bending machine

Single servo hybrid CNC bending machine

The GMP series features an all-steel welded structure that undergoes tempering and aging treatment to eliminate internal stress, ensuring excellent rigidity and stability. Equipped with the Swiss CybTouch 12PS control system and a servo motor-driven hydraulic pump, it delivers efficient and reliable performance. The machine also includes an automatic crowning compensation system, making it ideal for processing large and thick bending workpieces.

Category:

Description

Press Brake Machine – Technical Specifications

Type Number Bending Force (kN) Folding Length (mm) Type Column Distance (mm) Throat Depth (mm) Cylinder Stroke (mm) Opening Height (mm) Main Servo Motor Power (kW) Maximum Operating Speed (mm/s) Overall Dimension (mm) Hydraulic Oil Volume (L) Weight (kg)
Drive Suppress Return Journey Length (L) Width (W) Height (H)
GMP-50/1600 500 1600 1300 300 160 425 7.5 180 0-15 180 2100 1500 2150 160 3000
GMP-63/2500 630 2500 2000 300 160 425 7.5 180 0-15 180 3000 1600 2350 120 5000
GMP-80/2500 800 2500 2000 400 200 475 7.5 180 0-15 180 3000 1620 2400 120 5500
GMP-110/3200 1100 3200 2700 400 200 475 7.5 180 0-15 180 3700 1680 2550 140 7000
GMP-110/4000 1100 3200 3500 450 200 475 7.5 180 0-15 180 4500 1680 2550 140 8500
GMP-130/3200 1300 3200 2700 400 200 475 11 180 0-15 180 3700 1700 2650 150 7500
GMP-130/4000 1300 4000 3500 450 200 475 11 180 0-15 180 4500 1700 2650 150 9000
GMP-170/3200 1700 3200 2700 450 200 475 11 160 0-15 160 3750 1750 2750 160 9500
GMP-170/4000 1700 4000 3500 450 200 475 11 160 0-15 160 4550 1750 2750 160 11500
GMP-170/6000 1700 6000 5500 450 200 475 11 160 0-15 160 6550 1850 2850 160 18000
GMP-220/3200 2200 3200 2700 450 200 575 17.8 150 0-15 150 3750 1900 2850 160 11200
GMP-220/4000 2200 4000 3500 450 200 475 17.8 150 0-15 150 4550 1900 2850 160 12500
GMP-220/6000 2200 6000 5500 450 200 475 17.8 140 0-12 140 6550 2000 2950 160 19000
GMP-250/3200 2500 3200 2700 450 250 525 21.4 130 0-12 130 3800 2100 3150 170 14000
GMP-250/4000 2500 4000 3500 450 250 525 21.4 130 0-12 130 4600 2100 3150 170 16000
GMP-250/6000 2500 6000 5500 450 250 525 21.4 100 0-12 100 6600 2200 3200 170 23000
GMP-320/3200 3200 3200 2700 450 250 525 21.4 100 0-12 100 3800 2200 3250 170 15000
GMP-320/4000 3200 4000 3500 450 250 525 21.4 100 0-12 100 4600 2200 3250 170 19000
GMP-320/6000 3200 6000 5500 450 250 525 21.4 90 0-12 90 6600 2300 3350 170 28000
