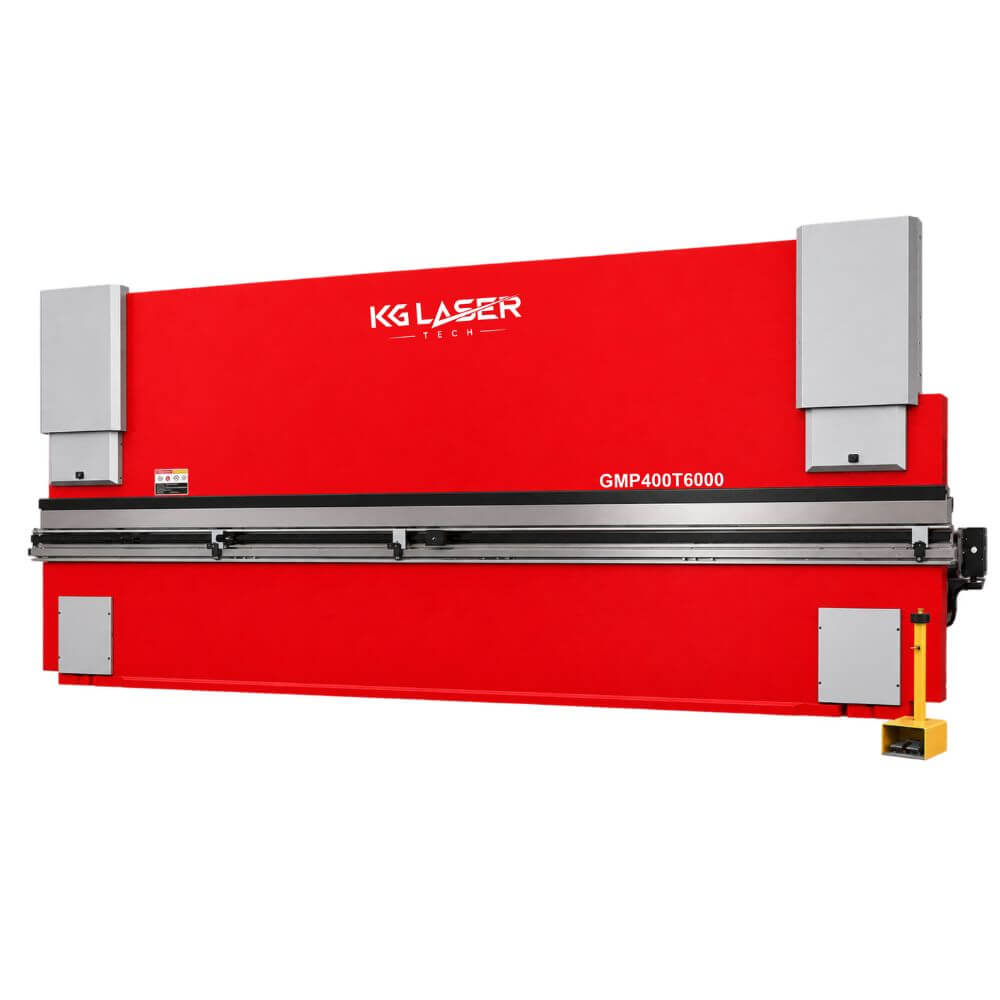

Dual-cylinder construction with synchronized dual-linkage control, enabling precise processing of large and special workpieces. Two machines can operate independently or in tandem, making it ideal for applications such as automotive parts, highway lighting poles, and power poles. Optional hydraulic compensation ensures accurate bending and minimizes deflection on both sides.
| Part Name | GMP-800T12000 | |
|---|---|---|
| Nominal force | 8000KN | |
| Length of workbench | 12000mm | |
| Distance between columns | 5000mm | |
| Throat depth | 600mm | |
| Slider stroke | 300mm | |
| Opening height | 600mm | |
| Main motor power | 30*2KW/15*4KW | |
| Working speed | Fast forward | 110mm/s |
| Working feed | 10mm/s | |
| Return | 100mm/s | |
| Equipment outline dimension | Length | 13000mm |
| Width | 2600mm | |
| Height | 3500mm | |
| Weight | 66000kg | |
